RHNPACKAGEFILE

DDL script

Columns

Name	Type	Nullable	Default value
PACKAGE_ID	NUMBER(38)	N
CAPABILITY_ID	NUMBER(38)	N
DEVICE	NUMBER(38)	N
INODE	NUMBER(38)	N
FILE_MODE	NUMBER(38)	N
USERNAME	VARCHAR2(32)	N
GROUPNAME	VARCHAR2(32)	N
RDEV	NUMBER(38)	N
FILE_SIZE	NUMBER(38)	N
MTIME	DATE	N
MD5	VARCHAR2(32)	Y
LINKTO	VARCHAR2(256)	Y
FLAGS	NUMBER(38)	N
VERIFYFLAGS	NUMBER(38)	N
LANG	VARCHAR2(32)	Y
CREATED	DATE	N	(sysdate)
MODIFIED	DATE	N	(sysdate)

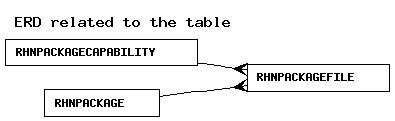

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_PACKAGE_FILE_CID_FK	CAPABILITY_ID	RHNPACKAGECAPABILITY	RHN_PKG_CAPABILITY_ID_PK	NO ACTION
RHN_PACKAGE_FILE_PID_FK	PACKAGE_ID	RHNPACKAGE	RHN_PACKAGE_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_PACKAGE_FILE_CID_PID_IDX	NORMAL	NONUNIQUE	CAPABILITY_ID , PACKAGE_ID	DDL script
RHN_PACKAGE_FILE_PID_CID_UQ	NORMAL	UNIQUE	PACKAGE_ID , CAPABILITY_ID	DDL script

Triggers

RHN_PACKAGEFILE_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_packagefile_mod_trig
before insert or update on rhnPackageFile
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := sysdate;
end;
