RHNPACKAGESOURCE

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
ORG_ID	NUMBER(38)	Y
SOURCE_RPM_ID	NUMBER(38)	N
PACKAGE_GROUP	NUMBER(38)	N
RPM_VERSION	VARCHAR2(16)	N
PAYLOAD_SIZE	NUMBER(38)	N
BUILD_HOST	VARCHAR2(256)	N
BUILD_TIME	DATE	N
SIGMD5	VARCHAR2(64)	N
VENDOR	VARCHAR2(64)	N
COOKIE	VARCHAR2(128)	N
PATH	VARCHAR2(1000)	Y
MD5SUM	VARCHAR2(64)	N
PACKAGE_SIZE	NUMBER(38)	N
LAST_MODIFIED	DATE	N	(sysdate)
CREATED	DATE	N	(sysdate)
MODIFIED	DATE	N	(sysdate)

Primary key:

Constraint Name	Columns
RHN_PKGSRC_ID_PK	ID

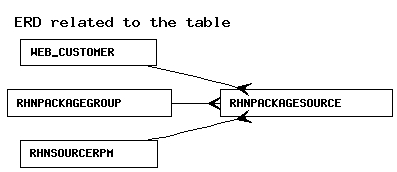

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_PKGSRC_GROUP_FK	PACKAGE_GROUP	RHNPACKAGEGROUP	RHN_PACKAGE_GROUP_ID_PK	NO ACTION
RHN_PKGSRC_OID_FK	ORG_ID	WEB_CUSTOMER	WEB_CUSTOMER_ID_PK	CASCADE
RHN_PKGSRC_SRID_FK	SOURCE_RPM_ID	RHNSOURCERPM	RHN_SOURCERPM_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_PKGSRC_ID_PK	NORMAL	UNIQUE	ID	DDL script
RHN_PKGSRC_SRID_OID_UQ	NORMAL	UNIQUE	SOURCE_RPM_ID , ORG_ID	DDL script

Referenced by:

Table	Constraint
RHNERRATAFILEPACKAGESOURCE	RHN_EFILEPS_PID_FK

Triggers

RHN_PKGSRC_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_pkgsrc_mod_trig
before insert or update on rhnPackageSource
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
        :new.modified := sysdate;
	:new.last_modified := sysdate;
end;
