RHNVERSIONINFO

DDL script

Columns

Name	Type	Nullable	Default value
LABEL	VARCHAR2(64)	N
NAME_ID	NUMBER(38)	N
EVR_ID	NUMBER(38)	N
CREATED	DATE	N	(sysdate)
MODIFIED	DATE	N	(sysdate)

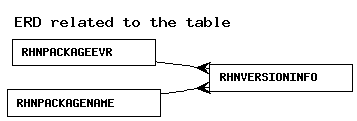

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_VERSIONINFO_EID_FK	EVR_ID	RHNPACKAGEEVR	RHN_PE_ID_PK	NO ACTION
RHN_VERSIONINFO_NID_FK	NAME_ID	RHNPACKAGENAME	RHN_PN_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_VERSIONINFO_LABEL_UQ	NORMAL	UNIQUE	LABEL	DDL script
RHN_VERSIONINFO_NID_EID_UQ	NORMAL	UNIQUE	NAME_ID , EVR_ID	DDL script
RHN_VINFO_LABEL_EID_NID_IDX	NORMAL	NONUNIQUE	LABEL , NAME_ID , EVR_ID	DDL script

Triggers

RHN_VERSIONINFO_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_versioninfo_mod_trig
before insert or update on rhnVersionInfo
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := sysdate;
end;
