RHN_COMMAND

Description:

CMMND A command that probes can run

Columns

Name	Type	Nullable	Default value	Comment
RECID	NUMBER(12)	N
NAME	VARCHAR2(40)	N
DESCRIPTION	VARCHAR2(80)	N
GROUP_NAME	VARCHAR2(40)	Y
ALLOWED_IN_SUITE	CHAR(1)	N	'1'
COMMAND_CLASS	VARCHAR2(255)	N	'/home/nocpulse/libexec/plugin'	Program to run
ENABLED	CHAR(1)	N	'1'	Whether command should be usable
FOR_HOST_PROBE	CHAR(1)	N	'0'	Whether this is one of the host-alive checks
LAST_UPDATE_USER	VARCHAR2(40)	Y
LAST_UPDATE_DATE	DATE	Y
SYSTEM_REQUIREMENTS	VARCHAR2(40)	Y
VERSION_SUPPORT	VARCHAR2(1024)	Y
HELP_URL	VARCHAR2(1024)	Y

Primary key:

Constraint Name	Columns
RHN_CMMND_RECID_PK	RECID

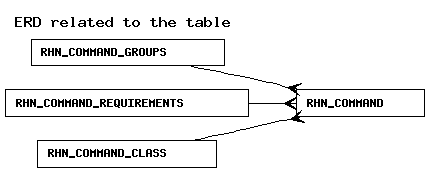

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_CMMND_CMDGR_GROUP_NAME_FK	GROUP_NAME	RHN_COMMAND_GROUPS	RHN_CMDGR_GROUP_NAME_PK	NO ACTION
RHN_CMMND_COMCL_CLASS_NAME_FK	COMMAND_CLASS	RHN_COMMAND_CLASS	RHN_COMCL_CLASS_NAME_PK	NO ACTION
RHN_CMMND_SYS_REQS_FK	SYSTEM_REQUIREMENTS	RHN_COMMAND_REQUIREMENTS	RHN_CREQS_NAME_PK	CASCADE

Unique Keys:

Constraint name	Columns
RHN_CMMND_NAME_UQ	RECID , COMMAND_CLASS

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_CMMND_NAME_UQ	NORMAL	UNIQUE	NAME	DDL script
RHN_CMMND_RECID_COMM_CL_UQ	NORMAL	UNIQUE	RECID , COMMAND_CLASS	DDL script
RHN_CMMND_RECID_PK	NORMAL	UNIQUE	RECID	DDL script

Referenced by:

Table	Constraint
RHN_COMMAND_PARAM_THRESHOLD	RHN_COPTR_CMD_ID_CMD_CL_FK
RHN_COMMAND_PARAMETER	RHN_CPARM_CMD_COMMAND_ID_FK
RHN_OS_COMMANDS_XREF	RHN_OSCXR_CMMND_COMMANDS_ID_FK
RHN_PROBE	RHN_PROBE_CMMND_COMMAND_ID_FK
