RHNCONFIGREVISION

DDL script

Columns

NameTypeNullableDefault valueComment
IDNUMBER(38)N
REVISIONNUMBER(38)N
CONFIG_FILE_IDNUMBER(38)N
CONFIG_CONTENT_IDNUMBER(38)N
CONFIG_INFO_IDNUMBER(38)N
DELIM_STARTVARCHAR2(16)N
DELIM_ENDVARCHAR2(16)N
CREATEDDATEN(sysdate)
MODIFIEDDATEN(sysdate)
CONFIG_FILE_TYPE_IDNUMBER(38)N1
CHANGED_BY_IDNUMBER(38)Ynull

Primary key:

Constraint NameColumns
RHN_CONFREVISION_ID_PKID

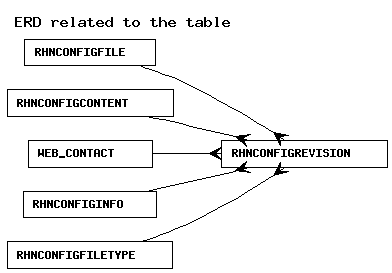

Foreign Keys:

Constraint NameColumnsReferenced tableReferenced ConstraintOn Delete Rule
RHN_CONFREVISION_CCID_FKCONFIG_CONTENT_ID RHNCONFIGCONTENT RHN_CONFCONTENT_ID_PK NO ACTION
RHN_CONFREVISION_CFID_FKCONFIG_FILE_ID RHNCONFIGFILE RHN_CONFFILE_ID_PK NO ACTION
RHN_CONFREVISION_CID_FKCHANGED_BY_ID WEB_CONTACT WEB_CONTACT_PK NO ACTION
RHN_CONFREVISION_CIID_FKCONFIG_INFO_ID RHNCONFIGINFO RHN_CONFINFO_ID_PK NO ACTION
RHN_CONF_REV_CFTI_FKCONFIG_FILE_TYPE_ID RHNCONFIGFILETYPE RHN_CONFFILETYPE_ID_PK NO ACTION

Options:

OptionSettings
TablespaceDATA_TBS
Index OrganizedNo
Generated by OracleNo
ClusteredNo
NestedNo
TemporaryNo

Indexes:

Index NameTypeUnuquenessColumnsDDL script
RHN_CONFREVISION_CFID_REV_UQNORMALUNIQUECONFIG_FILE_ID , REVISION DDL script
RHN_CONFREVISION_ID_PKNORMALUNIQUEID DDL script

Referenced by:

TableConstraint
RHNACTIONCONFIGFILENAME RHN_ACTIONCF_NAME_CRID_FK
RHNACTIONCONFIGREVISION RHN_ACTIONCR_CRID_FK
RHNCONFIGFILE RHN_CONFFILE_LCRID_FK
RHNSNAPSHOTCONFIGREVISION RHN_SNAPSHOTCR_CRID_FK

Triggers

RHN_CONFREVISION_ACCT_TRIG

Legend: comment string keyword reserved word operator
CREATE TRIGGER
rhn_confrevision_acct_trig
after insert on rhnConfigRevision
for each row

REFERENCING NEW AS NEW OLD AS OLD
declare
	org_id number;
	available number;
	added number;
begin
	select	cc.org_id id,
			oq.total + oq.bonus - oq.used available,
			content.file_size added
	into	org_id, available, added
	from	rhnConfigContent	content,
			rhnOrgQuota			oq,
			rhnConfigChannel	cc,
			rhnConfigFile		cf
	where	cf.id = :new.config_file_id
			and cf.config_channel_id = cc.id
			and cc.org_id = oq.org_id
			and :new.config_content_id = content.id;
	if added gt; available then
		rhn_exception.raise_exception('not_enough_quota');
	end if;
end;

RHN_CONFREVISION_DEL_TRIG

Legend: comment string keyword reserved word operator
CREATE TRIGGER
rhn_confrevision_del_trig
before delete on rhnConfigRevision
for each row

REFERENCING NEW AS NEW OLD AS OLD
declare
	cursor snapshots is
		select	snapshot_id id
		from	rhnSnapshotConfigRevision
		where	config_revision_id = :old.id;
begin
	for snapshot in snapshots loop
		update rhnSnapshot
			set invalid = lookup_snapshot_invalid_reason('cr_removed')
			where id = snapshot.id;
		delete from rhnSnapshotConfigRevision
			where snapshot_id = snapshot.id
				and config_revision_id = :old.id;
	end loop;
end;

RHN_CONFREVISION_MOD_TRIG

Legend: comment string keyword reserved word operator
CREATE TRIGGER
rhn_confrevision_mod_trig
before insert or update on rhnConfigRevision
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := sysdate;
end;
