RHNACTIONCONFIGREVISION

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
ACTION_ID	NUMBER(38)	N
SERVER_ID	NUMBER(38)	N
CONFIG_REVISION_ID	NUMBER(38)	N
FAILURE_ID	NUMBER(38)	Y
CREATED	DATE	N	(sysdate)
MODIFIED	DATE	N	(sysdate)

Primary key:

Constraint Name	Columns
RHN_ACTIONCR_ID_PK	ID

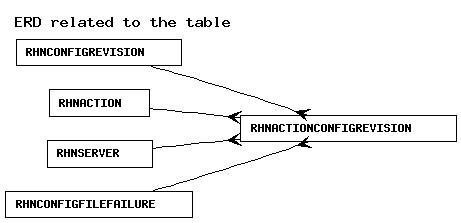

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_ACTIONCR_AID_FK	ACTION_ID	RHNACTION	RHN_ACTION_PK	CASCADE
RHN_ACTIONCR_CRID_FK	CONFIG_REVISION_ID	RHNCONFIGREVISION	RHN_CONFREVISION_ID_PK	CASCADE
RHN_ACTIONCR_FAILID_FK	FAILURE_ID	RHNCONFIGFILEFAILURE	RHN_CONFFILE_FAIL_ID_PK	NO ACTION
RHN_ACTIONCR_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_ACTIONCR_AID_SID_CRID_UQ	NORMAL	UNIQUE	ACTION_ID , SERVER_ID , CONFIG_REVISION_ID	DDL script
RHN_ACTIONCR_ID_PK	NORMAL	UNIQUE	ID	DDL script
RHN_ACTIONCR_SID_AID_IDX	NORMAL	NONUNIQUE	SERVER_ID , ACTION_ID	DDL script
RHN_ACT_CR_CRID_IDX	NORMAL	NONUNIQUE	CONFIG_REVISION_ID	DDL script

Referenced by:

Table	Constraint
RHNACTIONCONFIGREVISIONRESULT	RHN_ACTIONCFR_ACRID_FK

Triggers

RHN_ACTIONCR_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_actioncr_mod_trig
before insert or update on rhnActionConfigRevision
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := sysdate;
end;
