RHNSERVERACTION

DDL script

Columns

Name	Type	Nullable	Default value
SERVER_ID	NUMBER(38)	N
ACTION_ID	NUMBER(38)	N
STATUS	NUMBER(38)	N
RESULT_CODE	NUMBER(38)	Y
RESULT_MSG	VARCHAR2(1024)	Y
PICKUP_TIME	DATE	Y
REMAINING_TRIES	NUMBER(38)	N	(5)
COMPLETION_TIME	DATE	Y
CREATED	DATE	N	(sysdate)
MODIFIED	DATE	N	(sysdate)

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SERVER_ACTION_AID_FK	ACTION_ID	RHNACTION	RHN_ACTION_PK	CASCADE
RHN_SERVER_ACTION_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION
RHN_SERVER_ACTION_STATUS_FK	STATUS	RHNACTIONSTATUS	RHN_ACTION_STATUS_PK	NO ACTION

Unique Keys:

Constraint name	Columns
RHN_SERVER_ACTION_SID_AID_UQ	SERVER_ID , ACTION_ID

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SER_ACT_AID_SID_S_IDX	NORMAL	NONUNIQUE	ACTION_ID , SERVER_ID , STATUS	DDL script
RHN_SER_ACT_SID_AID_S_IDX	NORMAL	NONUNIQUE	SERVER_ID , ACTION_ID , STATUS	DDL script

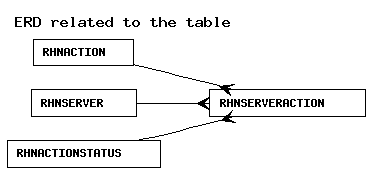

Referenced by:

Table	Constraint
RHNACTIONCONFIGCHANNEL	RHN_ACTIONCC_SID_AID_FK
RHNACTIONCONFIGFILENAME	RHN_ACTIONCF_NAME_AID_SID_FK

Triggers

RHN_SERVER_ACTION_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_server_action_mod_trig
before insert or update on rhnServerAction
for each row

REFERENCING NEW AS NEW OLD AS OLD
declare
	handle_status	number;
begin
	:new.modified := sysdate;
	handle_status := 0;
	if updating then
		if :new.status != :old.status then
			handle_status := 1;
		end if;
	else
		handle_status := 1;
	end if;
	if handle_status = 1 then
		if :new.status = 1 then
			:new.pickup_time := sysdate;
		elsif :new.status = 2 then
			:new.completion_time := sysdate;
		end if;
	end if;
end;
