RHNSERVER

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
ORG_ID	NUMBER(38)	N
DIGITAL_SERVER_ID	VARCHAR2(64)	N
SERVER_ARCH_ID	NUMBER(38)	N
OS	VARCHAR2(64)	N
RELEASE	VARCHAR2(64)	N
NAME	VARCHAR2(128)	Y
DESCRIPTION	VARCHAR2(256)	Y
INFO	VARCHAR2(128)	Y
SECRET	VARCHAR2(32)	N
CREATOR_ID	NUMBER(38)	Y
AUTO_DELIVER	CHAR(1)	N	'N'
AUTO_UPDATE	CHAR(1)	N	'N'
RUNNING_KERNEL	VARCHAR2(64)	Y
LAST_BOOT	NUMBER(38)	N	0
PROVISION_STATE_ID	NUMBER(38)	Y
CHANNELS_CHANGED	DATE	Y
CREATED	DATE	N	(sysdate)
MODIFIED	DATE	N	(sysdate)

Primary key:

Constraint Name	Columns
RHN_SERVER_ID_PK	ID

Check Constraints:

Constraint Name	Check Condition
RHN_SERVER_DELIVER_CK	auto_deliver in ('Y', 'N')
RHN_SERVER_UPDATE_CK	auto_update in ('Y', 'N')

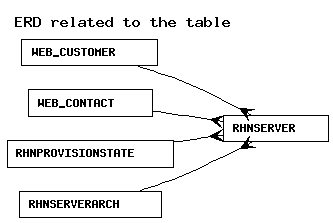

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SERVER_CREATOR_FK	CREATOR_ID	WEB_CONTACT	WEB_CONTACT_PK	SET NULL
RHN_SERVER_OID_FK	ORG_ID	WEB_CUSTOMER	WEB_CUSTOMER_ID_PK	CASCADE
RHN_SERVER_PSID_FK	PROVISION_STATE_ID	RHNPROVISIONSTATE	RHN_PROVSTATE_ID_PK	NO ACTION
RHN_SERVER_SAID_FK	SERVER_ARCH_ID	RHNSERVERARCH	RHN_SARCH_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SERVER_CREATED_ID_IDX	NORMAL	NONUNIQUE	CREATED , ID	DDL script
RHN_SERVER_CREATOR_IDX	NORMAL	NONUNIQUE	CREATOR_ID	DDL script
RHN_SERVER_DSID_UQ	NORMAL	UNIQUE	DIGITAL_SERVER_ID	DDL script
RHN_SERVER_ID_PK	NORMAL	UNIQUE	ID	DDL script
RHN_SERVER_OID_ID_IDX	NORMAL	NONUNIQUE	ORG_ID , ID	DDL script

Referenced by:

Table	Constraint
RHNACTIONCONFIGCHANNEL	RHN_ACTIONCC_SID_FK
RHNACTIONCONFIGREVISION	RHN_ACTIONCR_SID_FK
RHNAPPINSTALLSESSION	RHN_APPINST_SESSION_SID_FK
RHNACTIONPACKAGEREMOVALFAILURE	RHN_APR_FAILURE_SID_FK
RHNCHANNELFAMILYLICENSECONSENT	RHN_CFL_CONSENT_SID_FK
RHN_CHECK_PROBE	RHN_CHKPB_HOST_ID_FK
RHNCLIENTCAPABILITY	RHN_CLIENTCAP_SID_FK
RHNCPU	RHN_CPU_SERVER_FK
RHNDEVICE	RHN_DEVICE_SID_FK
RHN_SERVER_MONITORING_INFO	RHN_HOST_SERVER_ID_FK
RHN_HOST_PROBE	RHN_HSTPB_HOST_ID_FK
RHNKICKSTARTSESSION	RHN_KS_SESSION_HSID_FK
RHNKICKSTARTSESSION	RHN_KS_SESSION_NSID_FK
RHNKICKSTARTSESSION	RHN_KS_SESSION_OSID_FK
RHNMONITOR	RHN_MONITOR_SID_FK
RHNPROXYINFO	RHN_PROXY_INFO_SID_FK
RHNRAM	RHN_RAM_SERVER_FK
RHNREGTOKEN	RHN_REG_TOKEN_SID_FK
RHNSERVERACTIONVERIFYMISSING	RHN_SACTIONVM_SID_FK
RHNSERVERACTIONVERIFYRESULT	RHN_SACTIONVR_SID_FK
RHNSERVERACTIONPACKAGERESULT	RHN_SAP_RESULT_SID_FK
RHNSATELLITEINFO	RHN_SATELLITE_INFO_SID_FK
RHN_SAT_NODE	RHN_SATND_SID_FK
RHNSATELLITECHANNELFAMILY	RHN_SAT_CF_SID_FK
RHNSERVERCUSTOMDATAVALUE	RHN_SCDV_SID_FK
RHNSERVERCHANNEL	RHN_SC_SID_FK
RHNSNPSERVERQUEUE	RHN_SEC_NP_SID_FK
RHNSERVERACTIONSCRIPTRESULT	RHN_SERVERAS_RESULT_SID_FK
RHNSERVERCONFIGCHANNEL	RHN_SERVERCC_SID_FK
RHNSERVERHISTORY	RHN_SERVERHISTORY_SID_FK
RHNSERVERLOCATION	RHN_SERVERLOCATION_SID_FK
RHNSERVERNETWORK	RHN_SERVERNETWORK_SID_FK
RHNSERVERNOTES	RHN_SERVERNOTES_SID_FK
RHNSERVERPACKAGE	RHN_SERVERPACKAGE_SID_FK
RHNSERVERPATH	RHN_SERVERPATH_PSID_FK
RHNSERVERPATH	RHN_SERVERPATH_SID_FK
RHNSERVERPRESERVEFILELIST	RHN_SERVERPFL_KSID_FK
RHNSERVERACTION	RHN_SERVER_ACTION_SID_FK
RHNSERVERCACHEINFO	RHN_SERVER_CACHE_INFO_SID_FK
RHNSERVERDMI	RHN_SERVER_DMI_SID_FK
RHNSERVERINFO	RHN_SERVER_INFO_SID_FK
RHNSERVERINSTALLINFO	RHN_SERVER_INSTALL_INFO_SID_FK
RHNSERVERLOCK	RHN_SERVER_LOCK_SID_FK
RHNSERVERUUID	RHN_SERVER_UUID_SID_FK
RHNSERVEREVENT	RHN_SE_SERVER_ID_FK
RHNSERVERGROUPMEMBERS	RHN_SG_MEMBERS_FK
RHNSERVERMESSAGE	RHN_SM_SERVER_ID_FK
RHNSNAPSHOT	RHN_SNAPSHOT_SID_FK
RHNSERVERNEEDEDPACKAGECACHE	RHN_SNCP_SID_FK
RHNSERVERNEEDEDERRATACACHE	RHN_SNEC_SID_FK
RHNSOLARISPATCHEDPACKAGE	RHN_SOLARIS_PATCHEDP_SID_FK
RHNSERVERNETINTERFACE	RHN_SRV_NET_IFACE_SID_FK
RHNSERVERTOKENREGS	RHN_SRV_REG_TOK_SID_FK
RHNSNAPSHOTTAG	RHN_ST_SID_FK
RHNTRANSACTION	RHN_TRANS_SID_FK
RHNUSERSERVERPREFS	RHN_USERSERVERPREFS_SID_FK
RHNUSERSERVERPERMS	RHN_USPERMS_SID_FK
RHNVIRTUALINSTANCE	RHN_VI_HSI_FK
RHNVIRTUALINSTANCE	RHN_VI_VSI_FK

Triggers

RHN_SERVER_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_server_mod_trig
before insert or update on rhnServer
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
        :new.modified := sysdate;
end;
