Spacewalk DB Schema - Table-RHNSERVERMESSAGE

Main Tables Views Materialized Views Indexes Constraints Triggers Procedures Functions Packages Sequences Java Sources Sanity Check Index DDL scrips

Description Columns Primary key Check Constraints Foreign keys Unique Keys Options Indexes Referenced by Triggers Partitions

RHNSERVERMESSAGE

DDL script

Columns

Name	Type	Nullable	Default value
SERVER_ID	NUMBER(38)	N
MESSAGE_ID	NUMBER(38)	N
SERVER_EVENT	NUMBER(38)	Y
CREATED	DATE	N	(sysdate)
MODIFIED	DATE	N	(sysdate)

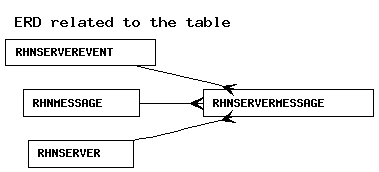

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SM_MESSAGE_ID_FK	MESSAGE_ID	RHNMESSAGE	RHN_M_ID_PK	CASCADE
RHN_SM_SERVER_ID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION
RHN_SM_SE_FK	SERVER_EVENT	RHNSERVEREVENT	RHN_SE_ID_PK	CASCADE

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SM_MI_SID_UQ	NORMAL	UNIQUE	MESSAGE_ID , SERVER_ID	DDL script
RHN_SM_UQ	NORMAL	UNIQUE	SERVER_ID , MESSAGE_ID	DDL script
RHN_SRVR_MSSG_SRVR_EVNT_IDX	NORMAL	NONUNIQUE	SERVER_EVENT	DDL script

Triggers

RHN_SM_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_sm_mod_trig
before insert or update on rhnServerMessage
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := sysdate;
end;
