RHN_SAT_NODE

Description:

satnd satellite node

Columns

Name	Type	Nullable	Default value	Comment
RECID	NUMBER(12)	N
SERVER_ID	NUMBER(38)	Y
TARGET_TYPE	VARCHAR2(10)	N	'node'
LAST_UPDATE_USER	VARCHAR2(40)	Y
LAST_UPDATE_DATE	DATE	Y
MAC_ADDRESS	VARCHAR2(17)	N
MAX_CONCURRENT_CHECKS	NUMBER(4)	Y
SAT_CLUSTER_ID	NUMBER(12)	N
IP	VARCHAR2(15)	Y
SCHED_LOG_LEVEL	NUMBER(4)	N	(0)
SPUT_LOG_LEVEL	NUMBER(4)	N	(0)
DQ_LOG_LEVEL	NUMBER(4)	N	(0)
SCOUT_SHARED_KEY	VARCHAR2(64)	N

Primary key:

Constraint Name	Columns
RHN_SATND_RECID_PK	RECID

Check Constraints:

Constraint Name	Check Condition
RHN_SATND_TARGET_TYPE_CK	target_type in ('node')

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SATND_CMDTG_RID_TAR_TY_FK	RECID , TARGET_TYPE	RHN_COMMAND_TARGET	RHN_CMDTG_RECID_TARGET_TYPE_PK	CASCADE
RHN_SATND_SATCL_SAT_CL_ID_FK	SAT_CLUSTER_ID	RHN_SAT_CLUSTER	RHN_SATCL_RECID_PK	CASCADE
RHN_SATND_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	DATA_TBS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SATND_RECID_PK	NORMAL	UNIQUE	RECID	DDL script
RHN_SAT_NODE_SCID_IDX	NORMAL	NONUNIQUE	SAT_CLUSTER_ID	DDL script
RHN_SAT_NODE_SID_IDX	NORMAL	NONUNIQUE	SERVER_ID	DDL script

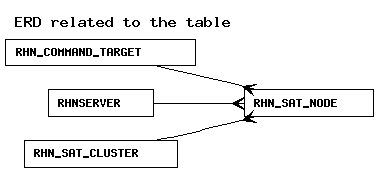

Referenced by:

Table	Constraint
RHN_SAT_NODE_PROBE	RHN_SNDPB_SATND_SAT_ND_ID_FK
